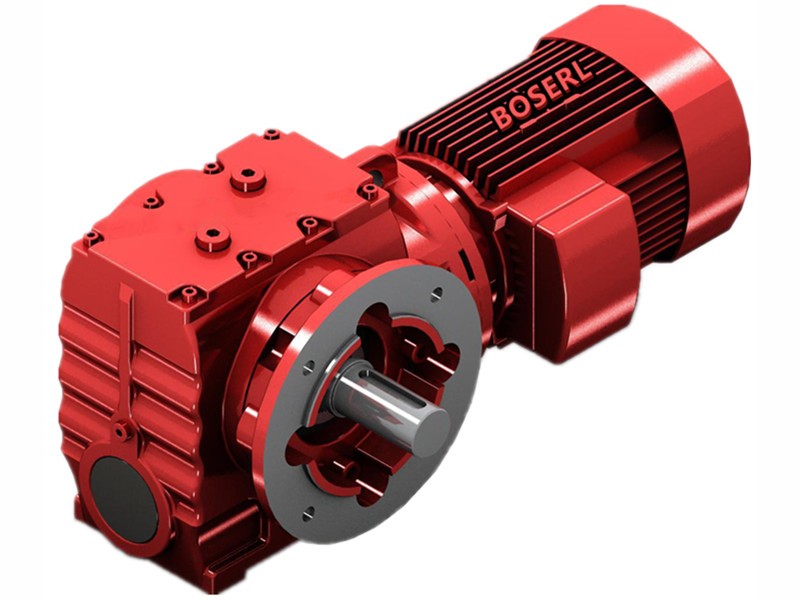

SA47DV80S4詳細信息
SA47DV80S4
關鍵詞：132千瓦抱閘減速機電機一體機_SA47DV80S4_SA47DM80S4
SA47DV80S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SA47DV80S4 | 84.00 | 0.55KW | 16.0rpm | 200N.m | 25kg | 5160N | 0.80 |
| SA47DV80S4 | 71.75 | 0.55KW | 19.0rpm | 177N.m | 25kg | 5310N | 0.95 |
| SA47DV80S4 | 67.20 | 0.55KW | 21.0rpm | 167N.m | 25kg | 5360N | 1.00 |
| SA47DV80S4 | 54.59 | 0.55KW | 25.0rpm | 162N.m | 25kg | 5120N | 0.95 |
| SA47DV80S4 | 47.32 | 0.55KW | 29.0rpm | 142N.m | 25kg | 5000N | 1.10 |
| SA47DV80S4 | 44.22 | 0.55KW | 31.0rpm | 133N.m | 25kg | 4940N | 1.15 |
| SA47DV80S4 | 38.23 | 0.55KW | 36.0rpm | 116N.m | 25kg | 4800N | 1.35 |
| SA47DV80S4 | 32.48 | 0.55KW | 42.0rpm | 100N.m | 25kg | 4640N | 1.55 |
| SA47DV80S4 | 29.00 | 0.55KW | 48.0rpm | 90N.m | 25kg | 4530N | 1.75 |
| SA47DV80S4 | 24.77 | 0.55KW | 56.0rpm | 77N.m | 25kg | 4360N | 2.00 |
| SA47DV80S4 | 23.20 | 0.55KW | 59.0rpm | 73N.m | 25kg | 4300N | 2.10 |
| SA47DV80S4 | 20.33 | 0.55KW | 68.0rpm | 68N.m | 25kg | 3910N | 1.60 |
| SA47DV80S4 | 17.62 | 0.55KW | 78.0rpm | 59N.m | 25kg | 3790N | 1.85 |
| SA47DV80S4 | 16.47 | 0.55KW | 84.0rpm | 56N.m | 25kg | 3740N | 2.00 |
| SA47DV80S4 | 14.24 | 0.55KW | 97.0rpm | 48N.m | 25kg | 3620N | 2.30 |
| SA47DV80S4 | 12.10 | 0.55KW | 114rpm | 41N.m | 25kg | 3480N | 2.60 |
| SA47DV80S4 | 10.80 | 0.55KW | 128rpm | 37N.m | 25kg | 3390N | 3.00 |
| SA47DV80S4 | 9.23 | 0.55KW | 150rpm | 32N.m | 25kg | 3260N | 3.40 |
SA47DM80S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SA47DM80S4 | 84.00 | 0.55KW | 16.0rpm | 200N.m | 25kg | 5160N | 0.80 |
| SA47DM80S4 | 71.75 | 0.55KW | 19.0rpm | 177N.m | 25kg | 5310N | 0.95 |
| SA47DM80S4 | 67.20 | 0.55KW | 21.0rpm | 167N.m | 25kg | 5360N | 1.00 |
| SA47DM80S4 | 54.59 | 0.55KW | 25.0rpm | 162N.m | 25kg | 5120N | 0.95 |
| SA47DM80S4 | 47.32 | 0.55KW | 29.0rpm | 142N.m | 25kg | 5000N | 1.10 |
| SA47DM80S4 | 44.22 | 0.55KW | 31.0rpm | 133N.m | 25kg | 4940N | 1.15 |
| SA47DM80S4 | 38.23 | 0.55KW | 36.0rpm | 116N.m | 25kg | 4800N | 1.35 |
| SA47DM80S4 | 32.48 | 0.55KW | 42.0rpm | 100N.m | 25kg | 4640N | 1.55 |
| SA47DM80S4 | 29.00 | 0.55KW | 48.0rpm | 90N.m | 25kg | 4530N | 1.75 |
| SA47DM80S4 | 24.77 | 0.55KW | 56.0rpm | 77N.m | 25kg | 4360N | 2.00 |
| SA47DM80S4 | 23.20 | 0.55KW | 59.0rpm | 73N.m | 25kg | 4300N | 2.10 |
| SA47DM80S4 | 20.33 | 0.55KW | 68.0rpm | 68N.m | 25kg | 3910N | 1.60 |
| SA47DM80S4 | 17.62 | 0.55KW | 78.0rpm | 59N.m | 25kg | 3790N | 1.85 |
| SA47DM80S4 | 16.47 | 0.55KW | 84.0rpm | 56N.m | 25kg | 3740N | 2.00 |
| SA47DM80S4 | 14.24 | 0.55KW | 97.0rpm | 48N.m | 25kg | 3620N | 2.30 |
| SA47DM80S4 | 12.10 | 0.55KW | 114rpm | 41N.m | 25kg | 3480N | 2.60 |
| SA47DM80S4 | 10.80 | 0.55KW | 128rpm | 37N.m | 25kg | 3390N | 3.00 |
| SA47DM80S4 | 9.23 | 0.55KW | 150rpm | 32N.m | 25kg | 3260N | 3.40 |
SA47DV80S4電機減速機類型：
S..DR..底腳安裝斜齒輪自鎖減速機
SA..DR..空心軸安裝斜齒輪蝸輪蝸桿減速機
SAF..DR..是B5法蘭安裝款式斜齒輪蝸輪蝸桿減速機
SAZ..DR..是B14法蘭空心軸安裝斜齒輪蝸輪蝸桿減速機
SF..DR..是B5法蘭安裝斜齒輪蝸輪蝸桿減速機
SH..DR..是空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHF..DR..是B5法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHZ..DR..是B14法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SA47DV80S4電機減速機安裝尺寸圖紙
SA47DV80S4電機減速機生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
二級減速機應用案例展示：
關鍵詞:SA系列減速機_二級減速器與電機_雙極減速機電機一套_二級減速機_二極減速機_雙級減速機_SA系列減速機生產廠家
SA系列減速機型號：SA37減速機,SA47減速機,SA57減速機,SA67減速機,SA77減速機,SA87減速機,SA97減速機
SA系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 132千瓦抱閘減速機電機一體機 SA47DV80S4 SA47DM80S4
- 上一條SA47DVE71D4
- 下一條SA47DRN80S4
